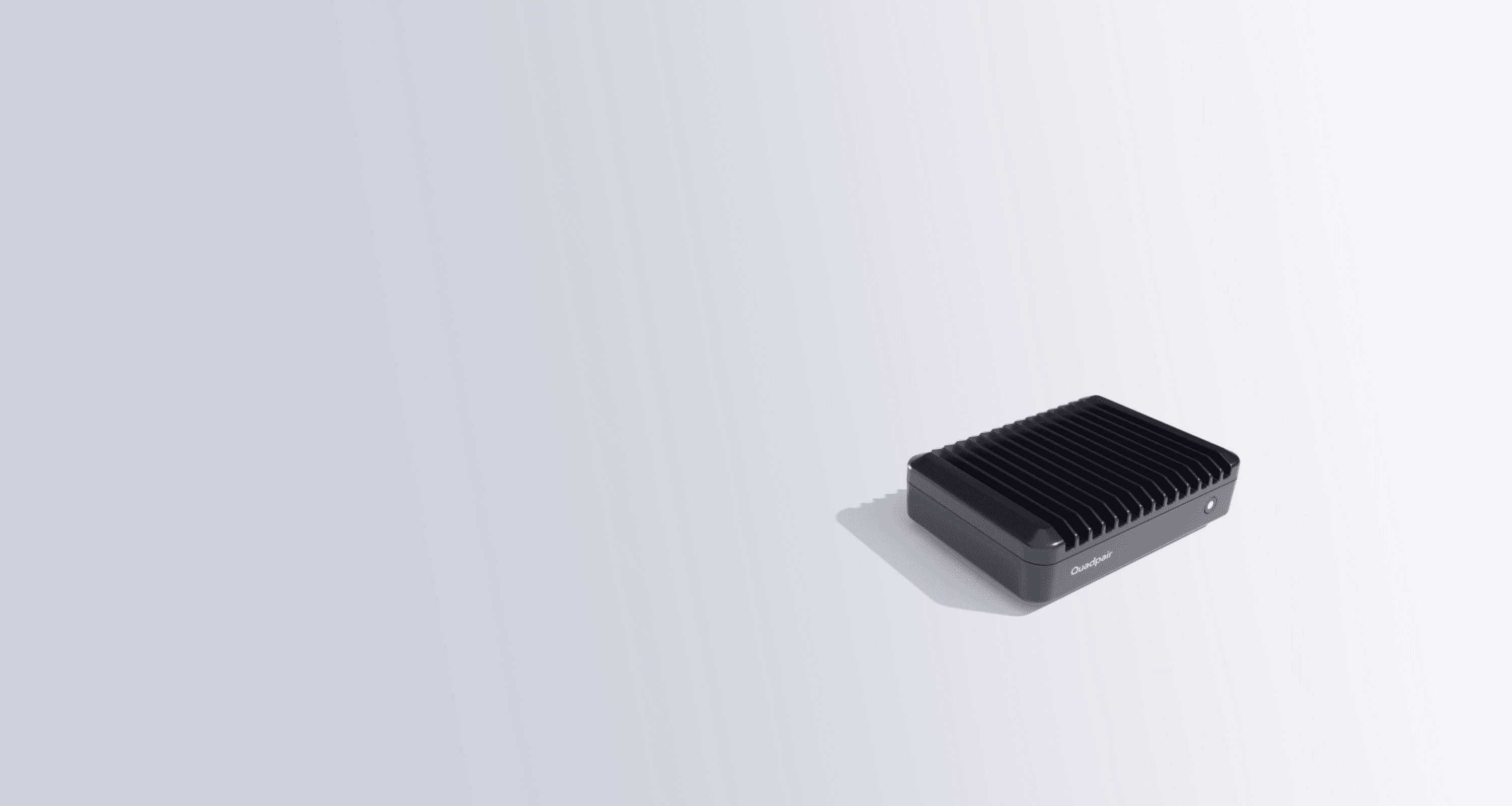

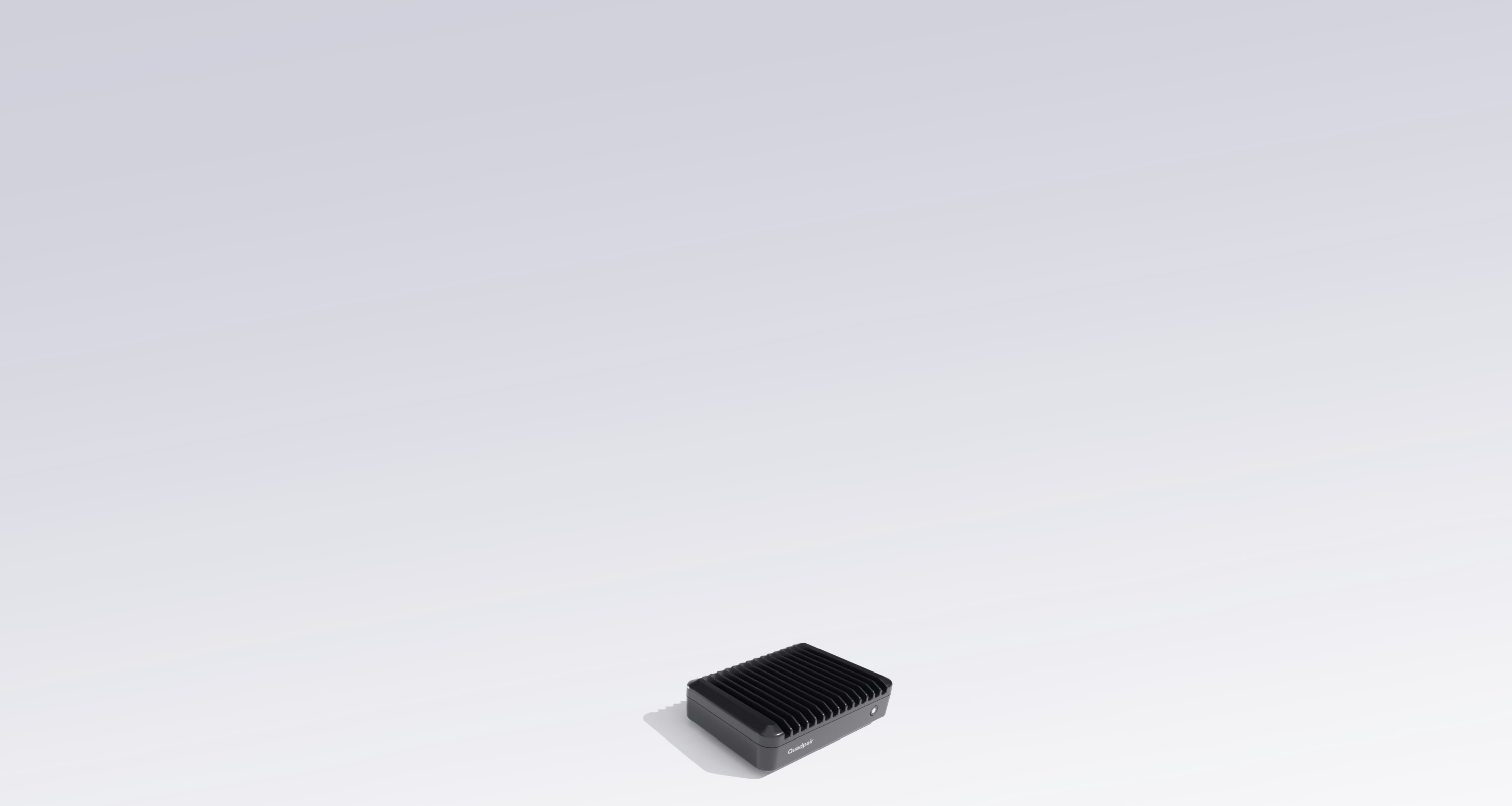

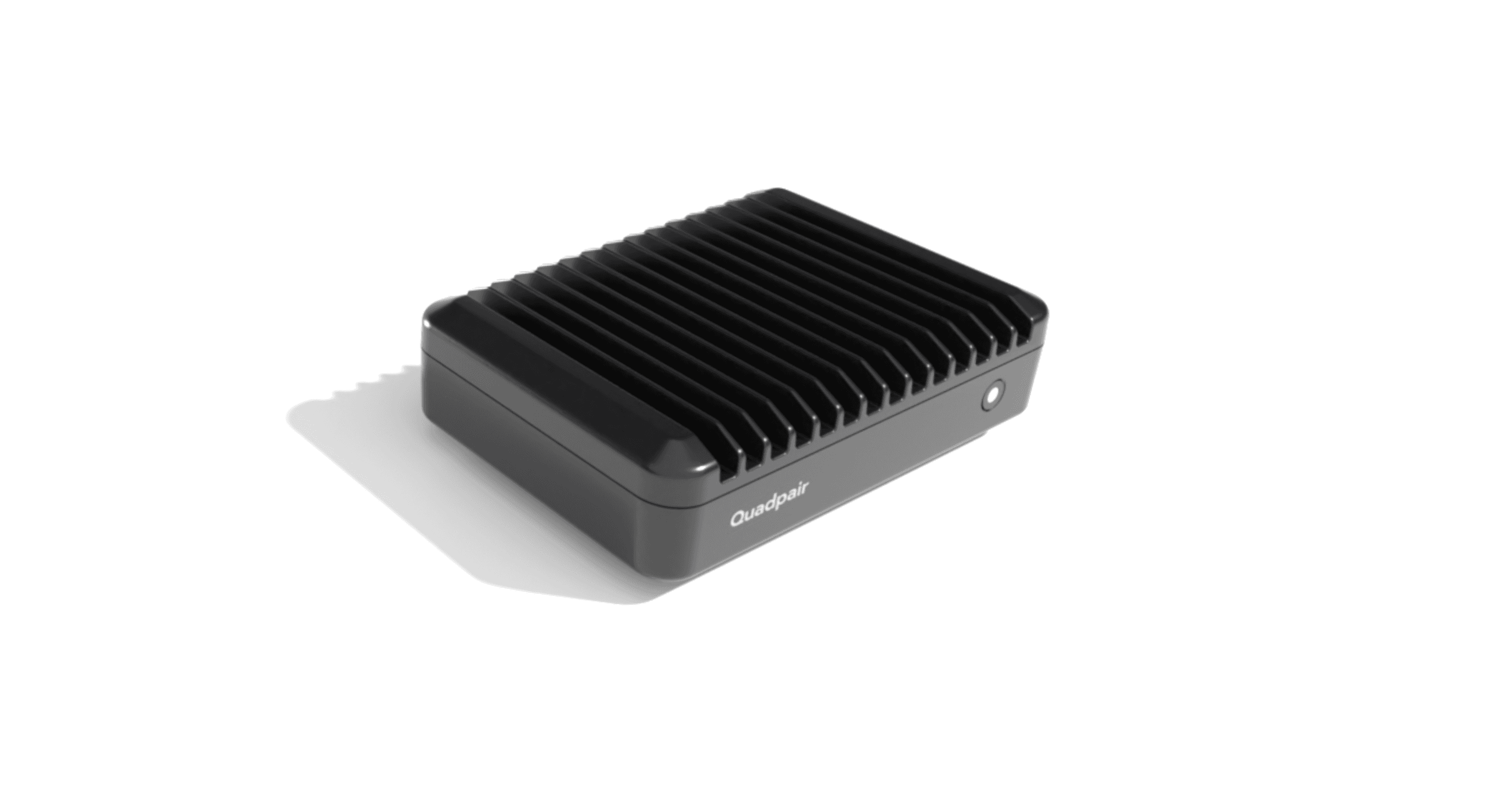

mini Pc on plain backbround

Simplify your
installation.

Display, record, or manage video at the edge with a versatile PoE powered mini PC for security, AV, and IT.

mini Pc on plain backbround

Simplify your
installation.

Display, record, or manage video at the edge with a versatile PoE powered mini PC for security, AV, and IT.

mini Pc on plain backbround

Simplify your
installation.

Display, record, or manage video at the edge with a versatile PoE powered mini PC for security, AV, and IT.

Partner

Quadpair is proud to be an Avigilon Technology Partner. Our PMC-100 is fully compatible with the Avigilon Unity Virtual Matrix, providing a reliable, simplified solution for all your video decoding needs.

Quadpair is proud to be an Avigilon Technology Partner. Our PMC-100 is fully compatible with the Avigilon Unity Virtual Matrix, providing a reliable, simplified solution for all your video decoding needs.

  • Easy to Deploy

    Small size and powered over a single Ethernet cable for an easy installation.

  • Reliable

    Fanless design for dusty environments and silent operation.

  • Versatile

    Open-platform, giving you the freedom to install your preferred software.

  • Easy to Deploy

    Small size and powered over a single Ethernet cable for an easy installation.

  • Reliable

    Fanless design for dusty environments and silent operation.

  • Versatile

    Open-platform, giving you the freedom to install your preferred software.

  • Easy to Deploy

    Small size and powered over a single Ethernet cable for an easy installation.

  • Reliable

    Fanless design for dusty environments and silent operation.

  • Versatile

    Open-platform, giving you the freedom to install your preferred software.

Deploy Anywhere

Deploy Anywhere

Outside of Hospital Building

Healthcare

Security guard looking at video footage

Security

school hallway

Education

Quadpair's PMC-100

Quadpair's PMC-100

Same product, different applications: The PMC-100 is a modern, flexible, purpose-built solution that fits seamlessly into any setup.

The PMC-100 is a modern, flexible, purpose-built solution that fits seamlessly into any setup.

Mini Server

Easy to deploy, compact for tight spaces, and fanless for dusty environments, the PMC-100 is a simple and reliable solution for edge recording.

Live Video Display

Display live video on any monitor using your choice of VMS software and decode up to 32 video streams simultaneously across dual 4K video outputs.

Edge AI

Edge AI

Leverage the PMC-100’s integrated M.2 expansion slot to future-proof your infrastructure. Seamlessly deploy real-time, AI-driven video analytics directly at the edge for smarter, more proactive security.

IP Broadcast

Purpose-built for silent operation on-set or in tight production kits, the PMC-100 supports dual 4K outputs while displaying live IP video feeds with a single Ethernet cable.

Digital Signage

The PMC-100 delivers professional-grade 4K signage with the simplicity of one Ethernet cable.

Designed for Small Spaces

Designed for Small Spaces

Slim design and VESA mountable, the PMC-100 tucks away effortlessly behind any display for a clean, professional finish.

Slim design and VESA mountable, the PMC-100 tucks away effortlessly behind any display for a clean, professional finish.

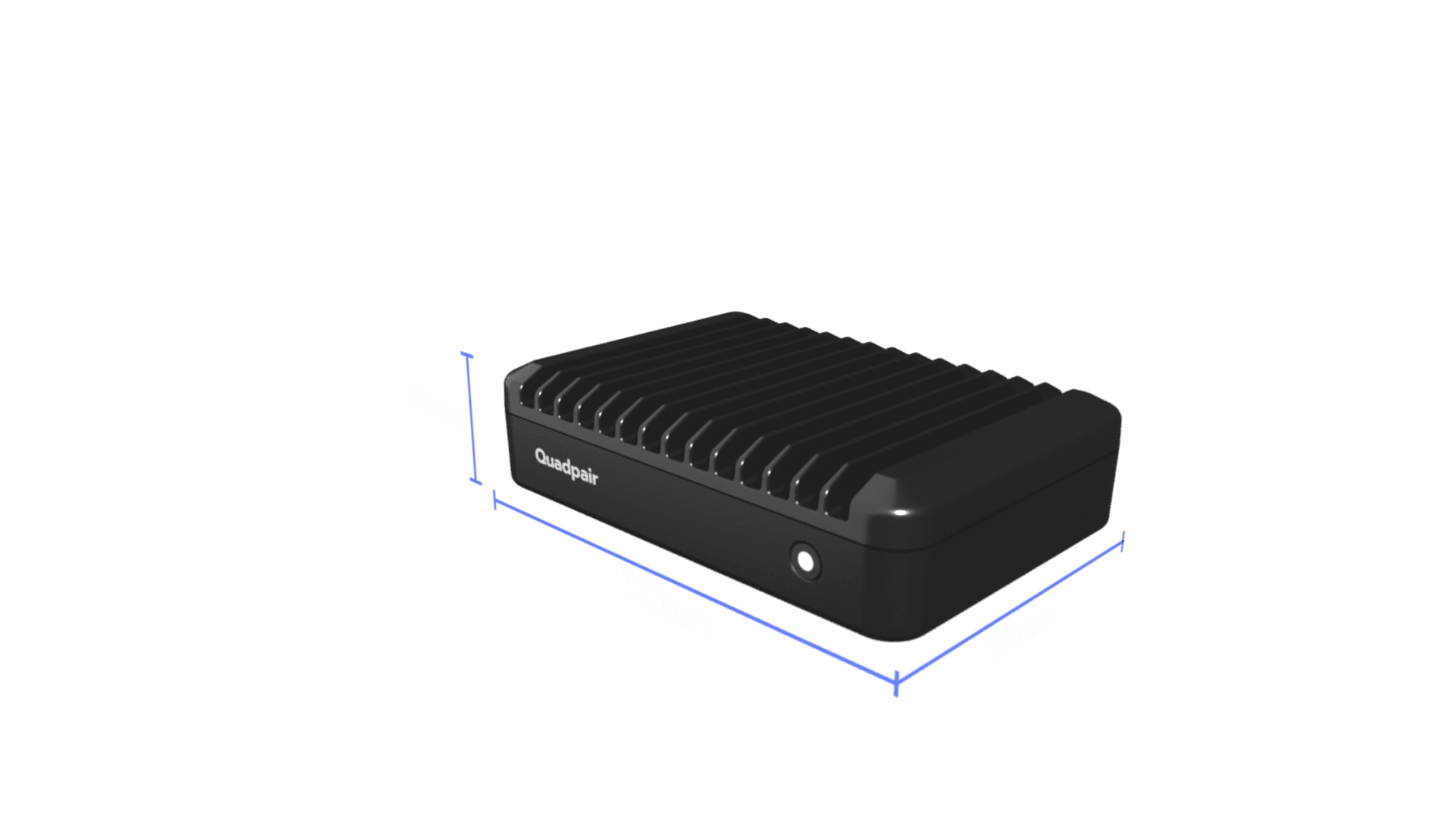

Mini PC Iimage with dimensions demonstrated around device.
  • Datasheet

    Processor

    Intel Amston Lake x7211RE

    Dual core 1.0GHz (2.4 GHz Burst)

    Memory

    4GB Quad Channel LPDDR5

    4800 MT/s

    Storage

    32GB eMMC

    Optional 128GB to 2TB NVMe SSD

    Video Output

    Dual simultaneous output up to 4K30

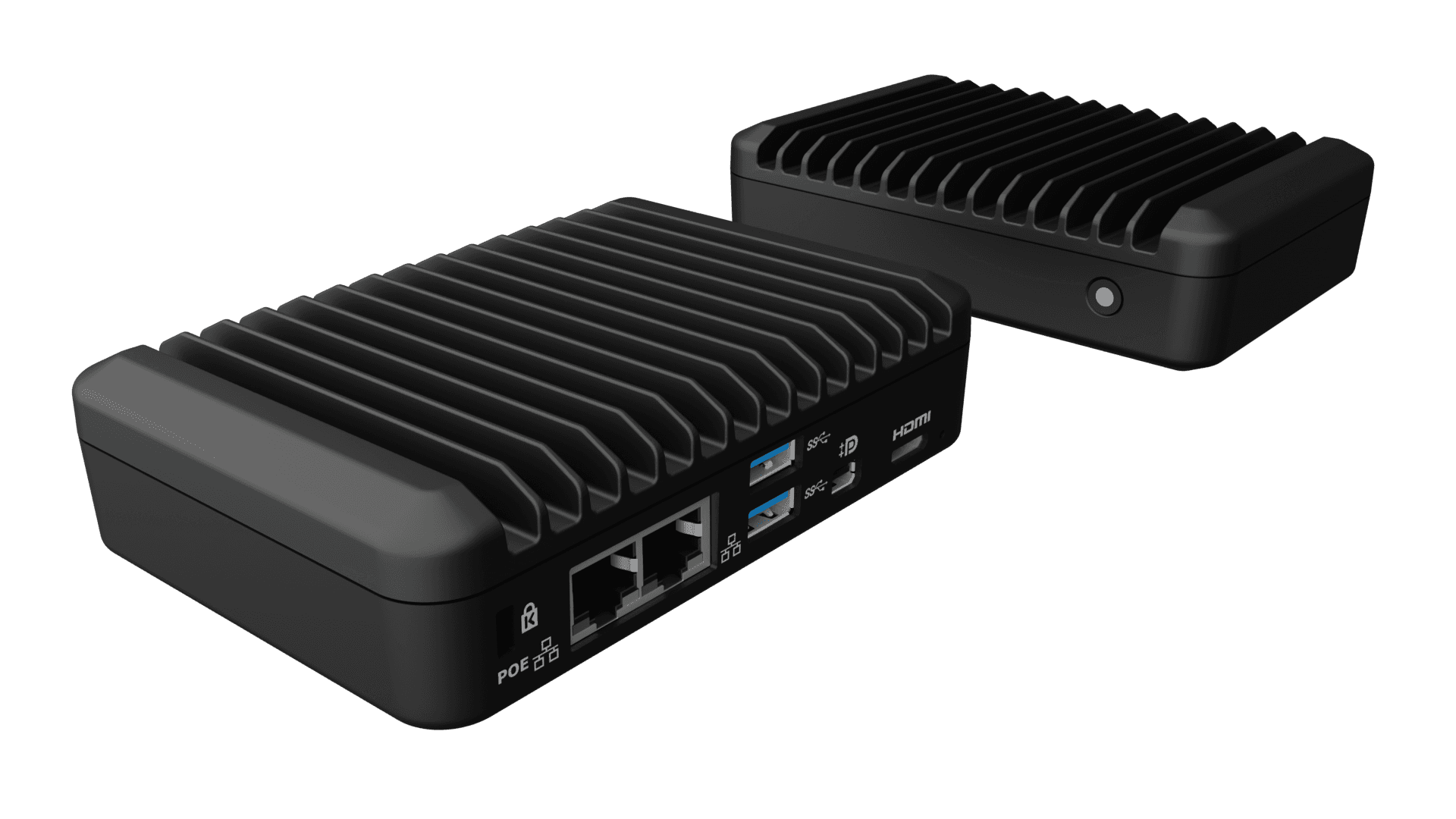

    Ports

    Dual 2.5G BASE-T RJ45

    Mini HDMI Type C

    Mini Display port DP++

    Dual USB 3.2 Gen 2 Type A

    Kingston Security Lock

    Security

    Secure Boot and TPM 2.0

    Power Consumption

    Max 25W

    Power Source

    PoE+ IEEE 802.3at Class 4

    Audio Output

    Through HDMI and DP ports

    Operating Temp

    0 °C to +40 °C (32 °F to 104 °F)

    -40°C to +55°C with Burst disabled

    Cooling

    Fanless convection cooled

    Enclosure

    Black powder coated aluminum

    Dimensions

    130 mm x 90 mm x 35mm

    5.11 in x 3.54 in x 1.38 in

    Certifications

    FCC Part 15 Subpart B Class A

    IC ICES-003 Class A

    ROHS

    Weight

    400g (0.88lb) not including mounts

    Warranty

    3 years

    Quadpair reserves the right to update product designs and technical specifications without notice to ensure peak performance.

  • Datasheet

    Processor

    Intel Amston Lake x7211RE

    Dual core 1.0GHz (2.4 GHz Burst)

    Memory

    4GB Quad Channel LPDDR5

    4800 MT/s

    Storage

    32GB eMMC

    Optional 128GB to 2TB NVMe SSD

    Video Output

    Dual simultaneous output up to 4K30

    Ports

    Dual 2.5G BASE-T RJ45

    Mini HDMI Type C

    Mini Display port DP++

    Dual USB 3.2 Gen 2 Type A

    Kingston Security Lock

    Security

    Secure Boot and TPM 2.0

    Power Consumption

    Max 25W




    Power Source

    PoE+ IEEE 802.3at Class 4

    Quadpair reserves the right to update product designs and technical specifications without notice to ensure peak performance.

Subscribe to stay updated

Subscribe to stay updated

Be the first to receive news about status updates and pre-order windows.

Be the first to receive news about status updates and pre-order windows.

Built for

the field.

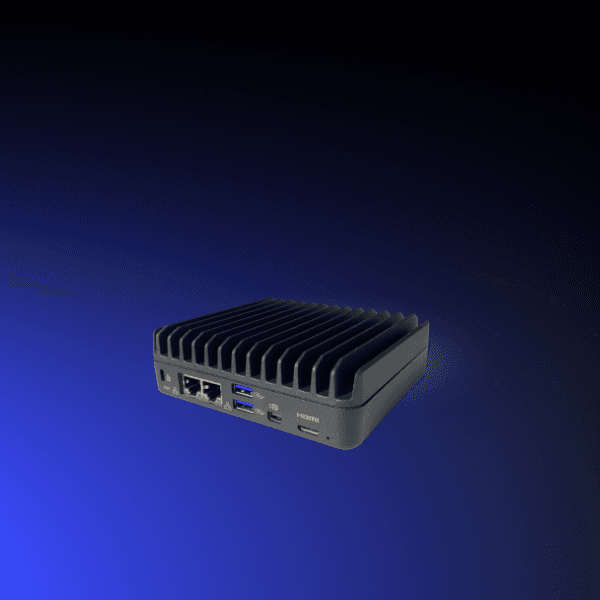

The mini PC by Quadpair is a PoE-powered, fanless Intel® mini-computer designed for demanding video security, digital signage, and thin-client applications.


With support for up to 32 channels of SD video decoding, dual 4K video outputs, and dual 2.5G Ethernet ports, this mini PC is designed to deliver a robust and versatile computing solution.

Open-Platform Ready: The PMC-100 is a hardware-focused solution designed for seamless integration with your choice of VMS, Cloud, or Signage software.


Built for the field.

The mini PC by Quadpair is a PoE powered, fanless Intel® mini-computer engineered for demanding video security, digital signage, and thin-client applications.


Comes pre-installed with Windows 10 or 11 IoT Enterprise, or Linux OS. With support for up to 32 channels of SD video decoding, dual 4K video outputs, and dual 2.5G Ethernet ports, this mini PC is designed to deliver a robust and versatile computing solution.
