Quadpair PMC-100
Quadpair PMC-100
A mini PC built for modern video security & digital signage.
A mini PC built for modern video security & digital signage.

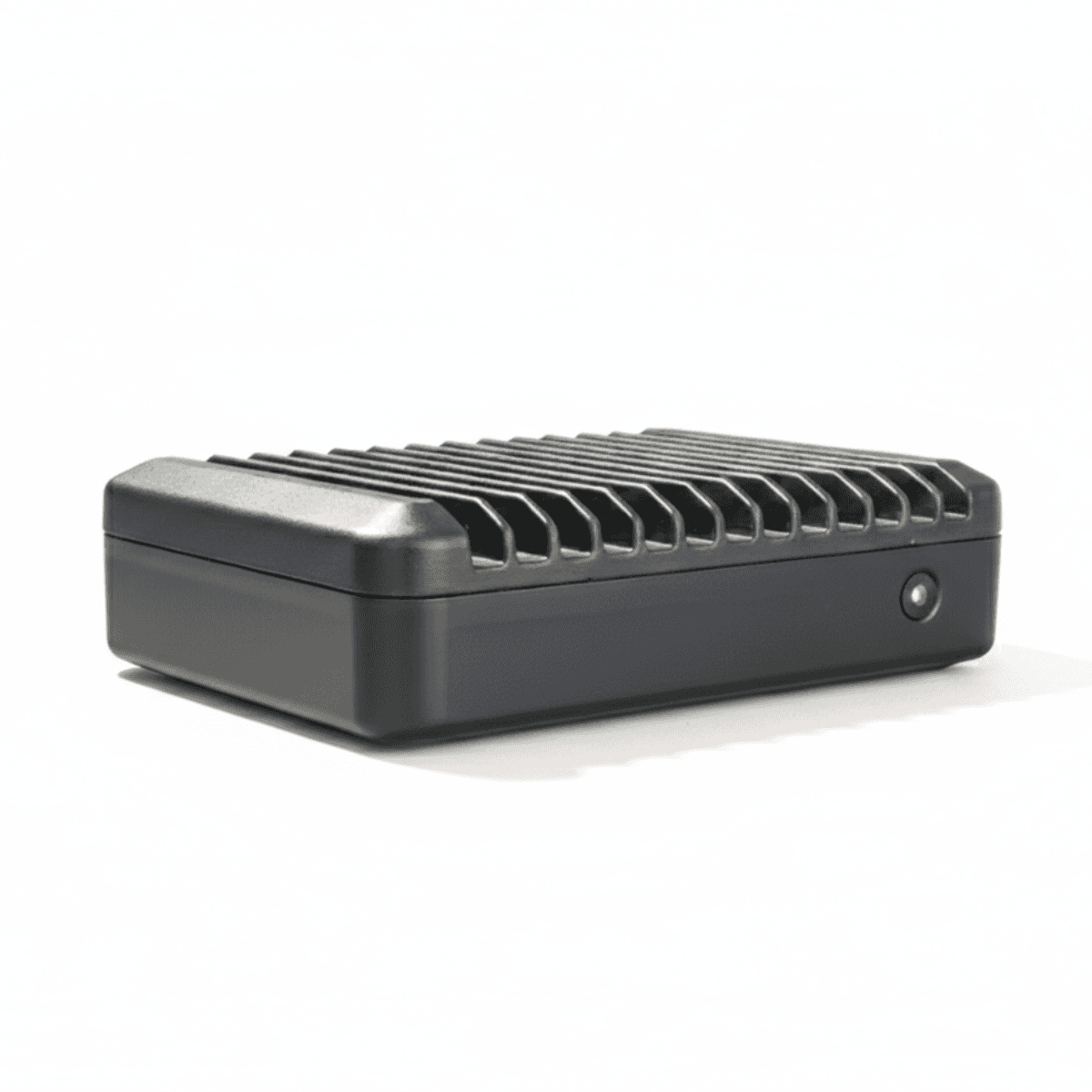

PoE Powered Mini PC
PMC-100 by Quadpair
Windows 10 or
Windows 11 IoT Enterprise, or Linux OS
Dual 2.5G Ethernet ports
Intel x7211RE processor with 32GB of eMMC and 4GB of LPDDR5 memory
4K Mini HDMI and Displayport outputs
Dual USB 3.2 10 Gbps
ports
PoE IEEE 802.3at Class 4 power input
2242 M.2 PCIe Expansion Slot.
VESA Mount/DIN Rail options
PoE Powered Mini PC
PMC-100 by Quadpair
Windows 10 or
Windows 11 IoT Enterprise, or Linux OS
Dual 2.5G Ethernet ports
Intel x7211RE processor with 32GB of eMMC and 4GB of LPDDR5 memory
4K Mini HDMI and Displayport outputs
Dual USB 3.2 10 Gbps
ports
PoE IEEE 802.3at Class 4 power input
2242 M.2 PCIe Expansion Slot.
VESA Mount/DIN Rail options
PoE Powered Mini PC
PMC-100 by Quadpair
Windows 10 or
Windows 11 IoT Enterprise, or Linux OS
Dual 2.5G Ethernet ports
Intel x7211RE processor with 32GB of eMMC and 4GB of LPDDR5 memory
4K Mini HDMI and Displayport outputs
Dual USB 3.2 10 Gbps
ports
PoE IEEE 802.3at Class 4 power input
2242 M.2 PCIe Expansion Slot.
VESA Mount/DIN Rail options
Status Update!
We are currently in the final validation stage. Our engineering team is completing comprehensive thermal testing and regulatory certifications to ensure our hardware integrates seamlessly into your professional environments.
Pre-orders begin June 2026
Datasheet
Processor
Intel Amston Lake x7211RE
Dual core 1.0GHz (2.4 GHz Burst)
Memory
4GB Quad Channel LPDDR5
4800 MT/s
Storage
32GB eMMC
Optional 128GB to 2TB NVMe SSD
Video Output
Dual simultaneous output up to 4K30

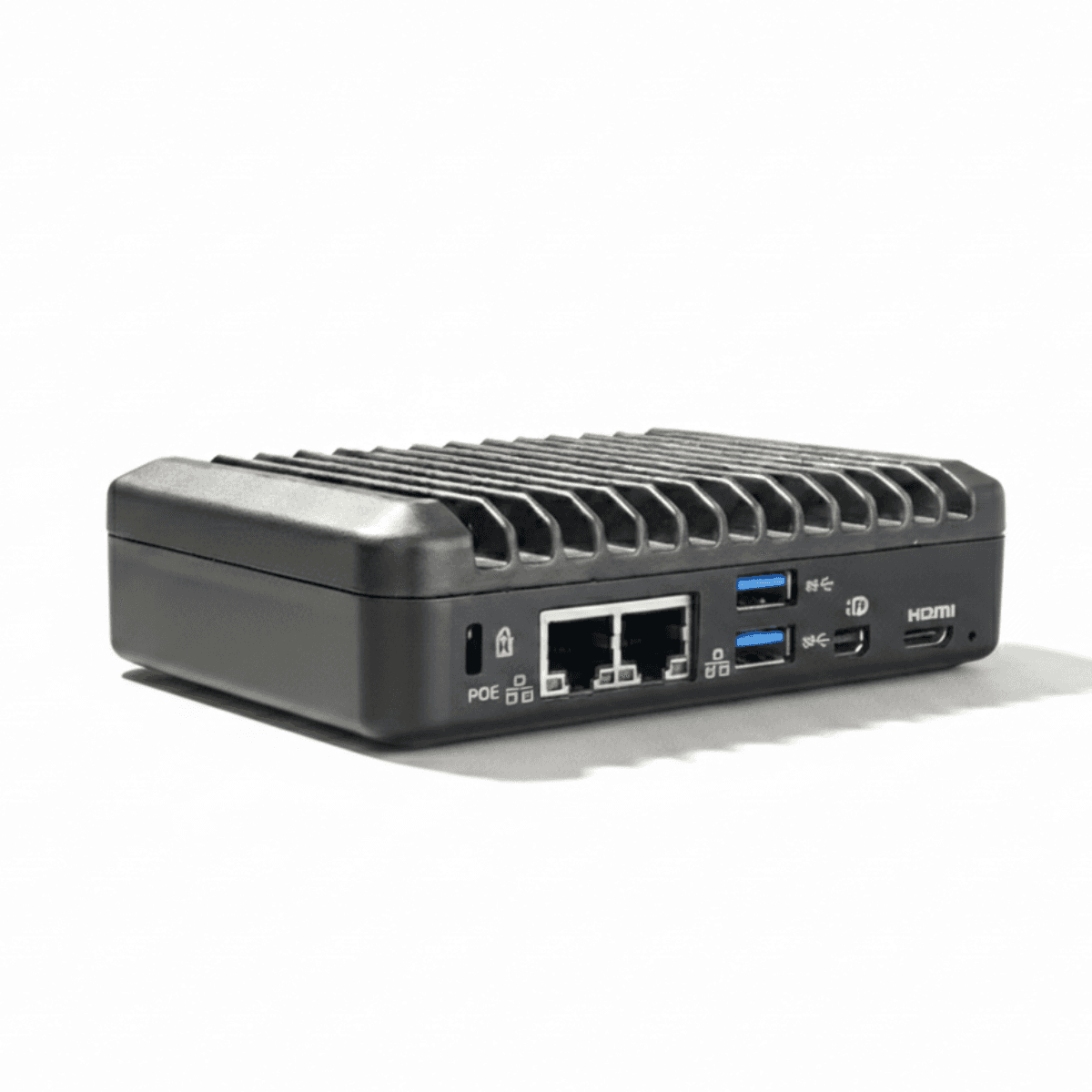

Ports
Dual 2.5G BASE-T RJ45
Mini HDMI Type C
Mini Display port DP++
Dual USB 3.2 Gen 2 Type A
Kingston Security Lock
Security
Secure Boot and TPM 2.0
Power Consumption
Max 25W
Power Source
PoE+ IEEE 802.3at Class 4
Audio Output
Through HDMI and DP ports
Operating Temp
0 °C to +40 °C (32 °F to 104 °F)
-40°C to +55°C with Burst disabled
Cooling
Fanless convection cooled
Enclosure
Black powder coated aluminum
Dimensions
130 mm x 90 mm x 35mm
5.11 in x 3.54 in x 1.38 in
Certifications
FCC Part 15 Subpart B Class A
IC ICES-003 Class A
ROHS
Weight
400g (0.88lb) not including mounts
Warranty
3 years
Quadpair reserves the right to update product designs and technical specifications without notice to ensure peak performance.
Datasheet
Processor
Intel Amston Lake x7211RE
Dual core 1.0GHz (2.4 GHz Burst)
Memory
4GB Quad Channel LPDDR5
4800 MT/s
Storage
32GB eMMC
Optional 128GB to 2TB NVMe SSD
Video Output
Dual simultaneous output up to 4K30
Ports
Dual 2.5G BASE-T RJ45
Mini HDMI Type C
Mini Display port DP++
Dual USB 3.2 Gen 2 Type A
Kingston Security Lock
Security
Secure Boot and TPM 2.0
Power Consumption
Max 25W
Power Source
PoE+ IEEE 802.3at Class 4
Audio Output
Through HDMI and DP ports
Operating Temp
0 °C to +40 °C (32 °F to 104 °F)
-40°C to +55°C with Burst disabled
Cooling
Fanless convection cooled
Enclosure
Black powder coated aluminum
Dimensions
130 mm x 90 mm x 35mm
5.11 in x 3.54 in x 1.38 in
Certifications
FCC Part 15 Subpart B Class A
IC ICES-003 Class A
ROHS
Weight
400g (0.88lb) not including mounts
Warranty
3 years
Quadpair reserves the right to update product designs and technical specifications without notice to ensure peak performance.
Submit the form to get pricing.
Status Update!
We are currently in the final validation stage. Our engineering team is completing comprehensive thermal testing and regulatory certifications to ensure our hardware integrates seamlessly into your professional environments.
Pre-orders begin June 2026
